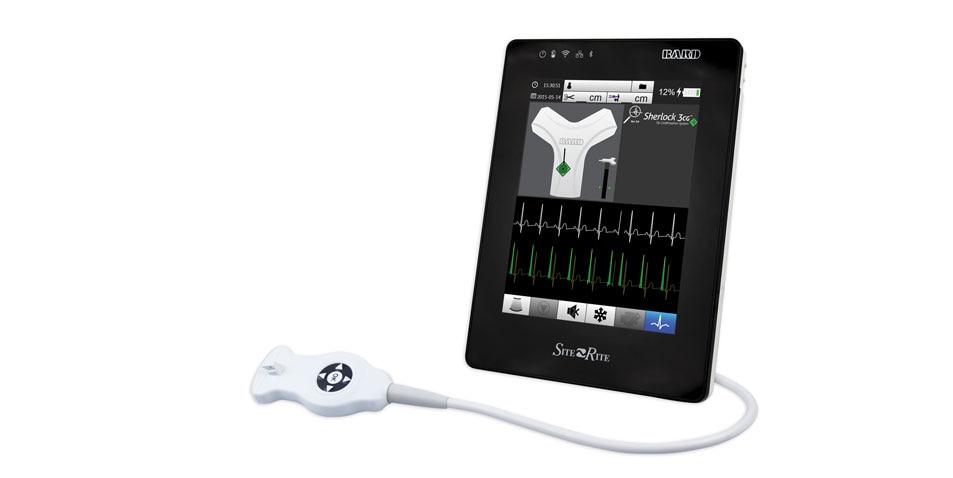

Site~Rite™ 8 Ultrasound System

Site-Rite™ 8 Ultrasound System Hero
Loading
Overview
false

Making the Invisible Visible

The Site~Rite™ 8 Ultrasound System with integrated Sherlock 3CG™ Diamond TCS is designed to simplify vascular access by allowing you to visualize PICC placements from beginning to end.

Features and Benefits
Traditional ultrasound imaging systems allow you to:

Traditional ultrasound imaging systems allow you to visualize the vessel and surrounding anatomy

Visualize and measure catheter size relative to the vessel

However, the Site~Rite™ 8 Ultrasound System with integrated Sherlock 3CG™ Diamond TCS uses traditional ultrasound imaging and a portfolio of visualization products, enabling you to visualize and measure catheter size relative to the vessel

Visualize virtual catheter location during PICC placement

Visualize virtual catheter location during PICC placement

Visualize maximum P-wave to confirm final catheter tip location

To learn more about how the Site~Rite™ 8 Ultrasound System with integrated Sherlock 3CG™ Diamond TCS can be an asset in your facility, contact BD representative in your area.

Getting to the Hearth of the Matter

Using X-ray to confirm PICC tip placement potentially delays time to treatment and exposes patients to harmful radiation.1

The Sherlock 3CG™ Diamond Tip Confirmation System (TCS) gets to the heart of the matter by using an adult patient’s cardiac electrical activity to position the tip of the PICC in close proximity to the Cavo Atrial Junction (CAJ), enabling PICC tip confirmation at the patient’s bedside.

Visual catheter tip confirmation

The SHERLOCK 3CG™ Diamond Tip Confirmation System (TCS) is an advanced technology that deciphers P-wave morphology and determines PICC tip position relative to the CAJ.

Simultaneous views of both catheter tip tracking and the patient’s electrocardiogram (ECG) are displayed, allowing you to navigate the catheter tip into the SVC and confirm catheter placement in proximity to the CAJ using ECG technology.

Designed to minimize the challenges of the PICC placement process by helping:

    • Locate and navigate the catheter tip in real-time
    • Confirm catheter tip placement at the CAJ in adult patients with identifiable P-waves
    • Eliminate confirmatory chest X-rays to reduce radiation exposure
    • Release the line to provide life sustaining therapy at the bedside
    • Reduce time wasted waiting for PICC tip confirmation using alternative post-placement methods

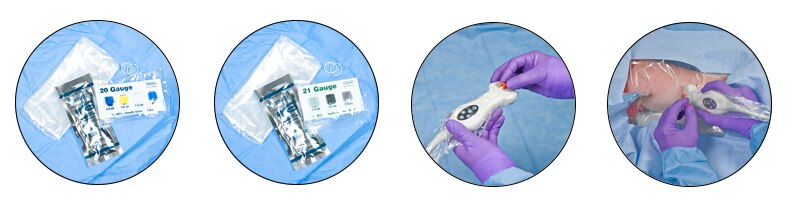

    Needle Guide Kits

    BD offers an exclusive line of needle guides designed for Site~Rite™ Ultrasound Systems to help clinicians guide needles to vascular structures at specific depths.

    Site~Rite™ Needle Guide Kit Features and Benefits

      Traditional ultrasound imaging systems allow you to:
      • Guides needle to specified depth under probe
      • Available in 18G, 20G, and 21G
      • Available with 48" (122 cm) probe covers

      Needle Guide Kit Product Codes

        Product Codes

        Description

        L x W

        Taper

        Thickness

        Depths (cm)

        Product
        Code

        Quantity
        Per Box

        0.5

        1.0

        1.5

        2.0

        2.5

        3.0

        3.5

        21G Needle Guide Kit

        48” x 6” (122 cm x 15 cm)

        None

        1 mm





        900013B01

        10

        20G Needle Guide Kit

        48” x 6” (122 cm x 15 cm)

        None

        1 mm







        9001C0214

        10

        18G Needle Guide Kit

        48” x 6” (122 cm x 15 cm)

        None

        1 mm







        9001C0212

        10

        Probe Cover Kits

        BD offers a line of sterile probe cover kits for Site~Rite™ Ultrasound System probes.

        Sterile ultrasound probe covers help reduce the potential for cross-contamination and bloodstream infections by creating a sterile barrier between the ultrasound probe and the patient.

        Features and Benefits

        • Designed for easy application
        • Available in 12-inch (30 cm), 48-inch (122 cm) lengths

        Pinpoint GT Safety Introducer Needle Product Codes

        Product Codes

        Description

        L x W

        Taper

        Thickness

        Product Code

        Qty/Box

         Probe Sheath Kit

        48” x 6” (122 cm x 15 cm)

        None

        1.0 mil

        9001C0197

        10

        Intraoperative Ultrasound Cover Kit

        12” x 5”  (30 cm x 12.7 cm)

        None

        1.0 mil

        900023B01

        10

        Medical Equipment Roll Stand (MER)
        Medical Equipment Roll Stand (MER)

        Designed to simplify medical equipment transportation.

        The mounting plate & equipment mount supports medical equipment up to 15 lbs (6.8 kg), including qualified Site~Rite™ Ultrasound Systems.



        Please see your Ultrasound System Instructions for Use for the appropriate rollstand qualified for use with your device.



        Articulating equipment mount supports medical equipment up to 8 lbs (3.6 kg), including Sherlock 3CG™ TCS.



        Product codes:
        9770206 - Medical Equipment Roll Stand (MER)
        BAR000206 - Printer mount for MER rollstands
        9770203 - Brother Printer for the Sherlock 3CG™ TCS system

        Resources
        References

        Please note, not all products, services or features of products and services may be available in your local area. Please check with your local BD representative.

        References
        1. NICE guidelines 2015. “The Sherlock 3CG Tip Confirmation System for placement of peripherally inserted central catheters”.Chapter 6.1 https://www.nice.org.uk/guidance/mtg24
