Our infusion adapter features a built-in BD PhaSeal™ connector to connect an IV bag with a nonvented infusion set.

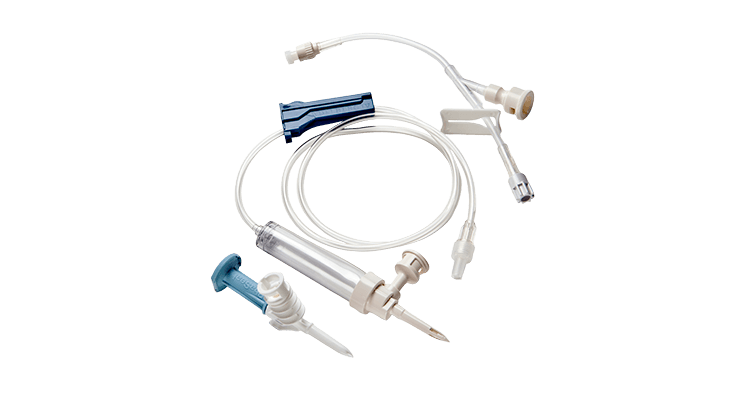

Our secondary set and secondary set with a drip chamber feature a built-in BD PhaSeal™ connector that forms a closed system with an IV bag—with or without a drip chamber.

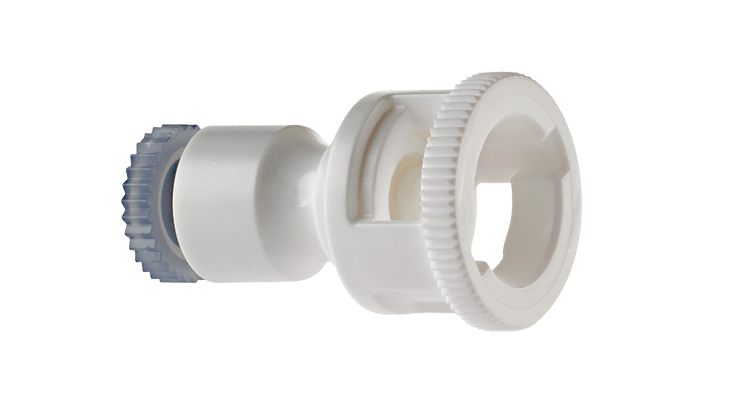

BD PhaSeal™ connector
The BD PhaSeal™ connector attaches to the patient's IV line to provide a closed connection to the BD PhaSeal™ syringe safety device.

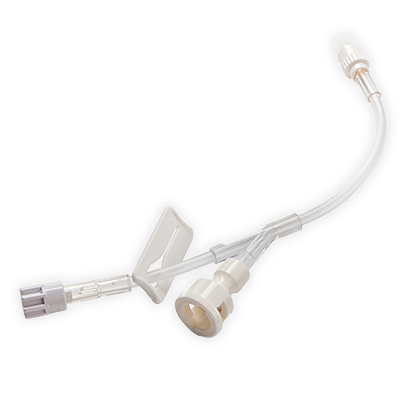

BD PhaSeal™ Y-site connector
The BD PhaSeal™ Y-site connector is extension tubing with a built-in BD PhaSeal™ connector.
| Infusion adapter | |
|---|---|
| Material | Not reusable; BPA free; latex free; DEHP free; sterilised using ethylene oxide |
| Protective cap | Polypropylene |
| Spike housing | Polypropylene |
| Membrane | Thermoplastic elastomer |
| Spike port | Vulcanizate elastomer |
| Secondary set with drip chamber | |
|---|---|
| Total length | 102 cm |
| Priming volume | 12.5 mL |
| Drops per mL | 20 |
| Material | Not reusable; BPA free; latex free; DEHP free; sterilised using ethylene oxide |
| Protective cap (spike) | Polyethylene |
| Spike | Acrylonitrile-butadiene-styrene copolymer |
| Connector | Acrylonitrile-butadiene-styrene copolymer |
| Membrane | Thermoplastic elastomer |
| Drip chamber | Polyvinyl chloride, DEHP free |
| Tubing | Polyvinyl chloride, DEHP free |
| Roller clamp | Acrylonitrile-butadiene-styrene copolymer |
| Male luer lock | Acrylonitrile-butadiene-styrene copolymer |
| Protective cap with flow stop | Polyethylene |
| Connector luer lock | |
|---|---|
| Material | Not reusable; BPA free; latex free; sterilised using ethylene oxide |
| External fitting | Luer lock |
| Dimensions | 26 mm x 17 mm |
| Internal volume | 0.1 mL |
| Connector housing | Polypropylene |
| Membrane | Thermoplastic elastomer |
| Protective cap | Polyethylene |
| Y-site connector | |
|---|---|
| Material | Not reusable; BPA free; latex free; DEHP free; sterilised using ethylene oxide |
| Protective cap, female luer lock | Acrylonitrile-butadiene-styrene copolymer |
| Female luer lock | Acrylonitrile-butadiene-styrene copolymer |
| Tubing | Polyvinyl chloride; DEHP free; 21-cm long |
| Slide clamp | Polypropylene |
| Connector housing | Acrylonitrile-butadiene-styrene copolymer |
| Membrane | Thermoplastic elastomer |
| Y-site | Acrylonitrile-butadiene-styrene copolymer |
| Rotating collar | Acrylonitrile-butadiene-styrene copolymer |
| Male luer lock | Acrylonitrile-butadiene-styrene copolymer |
| Protective cap with flow stop | Polyethylene |
| Priming volume | 1.6 mL |
